 How To Call a Webhook When a Run Completes

Learn about CsvPath Framework: Find lots more information and how-tos about CsvPath Framework automating data preboarding at https://www.csvpath.org.

You can trigger up to four webhooks at the end of a run. If you like, a webhook can optionally fire at the end of every run. In addition, one or more of the follow conditions can trigger a call to a webhook endpoint:

• An error was raised during the run
• The run completed successfully in a valid state
• The run completed successfully, but in an invalid state

Keep in mind that a run doesn’t automatically become invalid when an error is raised. Nor does a run have to have any errors for it to be marked invalid. Validity is completely at the discretion of the csvpath statement writer. To mark a run invalid, just use the fail() function. To automatically fail a run when an error is raised, use validation-mode with the setting including fail.

How to do it

• Right-click on a named-paths group and select Set webhooks

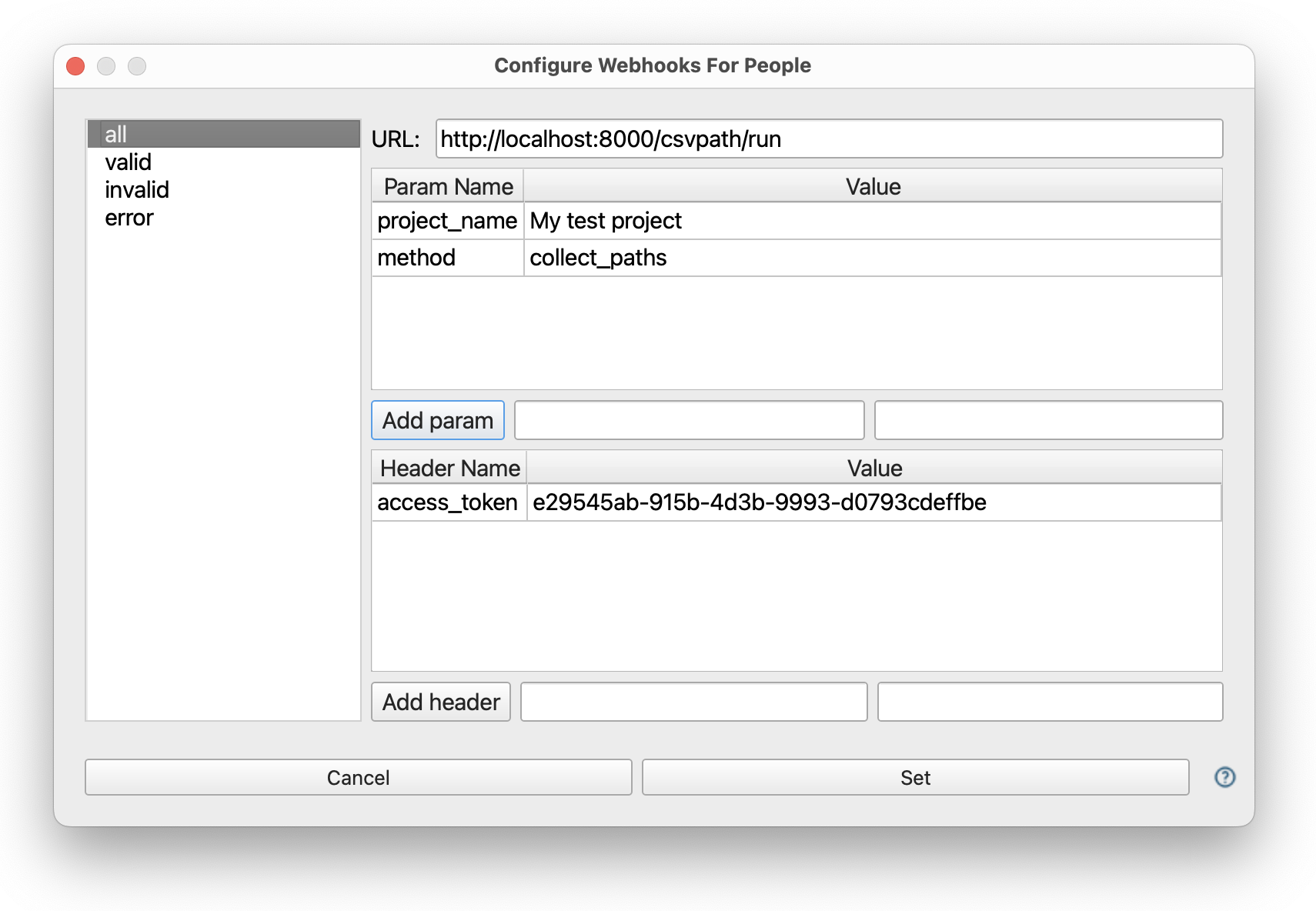

• The Webhooks Dialog opens

• In the image above the configuration is pointing towards a local FlightPath Server.
• On the left you see the four types of webhooks in vertical tabs. When the Dialog opens you are looking at the all webhook. This is the webhook that will always run, if it is configured.
• At the top right, add your parameters.
• Below the parameters add your headers. You will typically need at least an auth header. In the case of FlightPath Server the auth header is access_token, and it contains the API key of the project you are working on.
• When you are done submit the form. Your webhook will be called at the end of the next run, if the webhook’s condition matches.

Webhook parameters are in the form this > that, where this is a name that points to that value. As well as the option of being a static value, a value can come from a csvpath’s metadata or variables. A value from a csvpath’s metadata has the prefix meta|. Likewise, a value from the dynamic variables generated by a csvpath is prefixed by var|.

What you need

To try out webhooks, you can start an instance of FlightPath Server. Full instructions are here. You will also need to create a project on the server. For our purposes, we will assume that the FlightPath Data project has the same inputs and archive as the FlightPath Server project.

Setup the project assets

• In the left-hand project files tree click to open examples > math

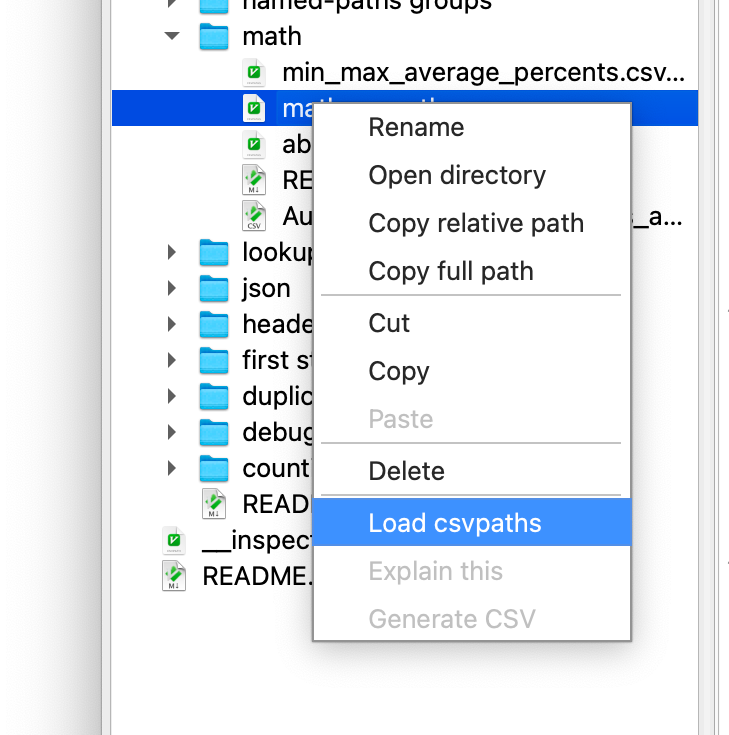

• In the math directory, right-click on math.csvpaths and click Load csvpaths

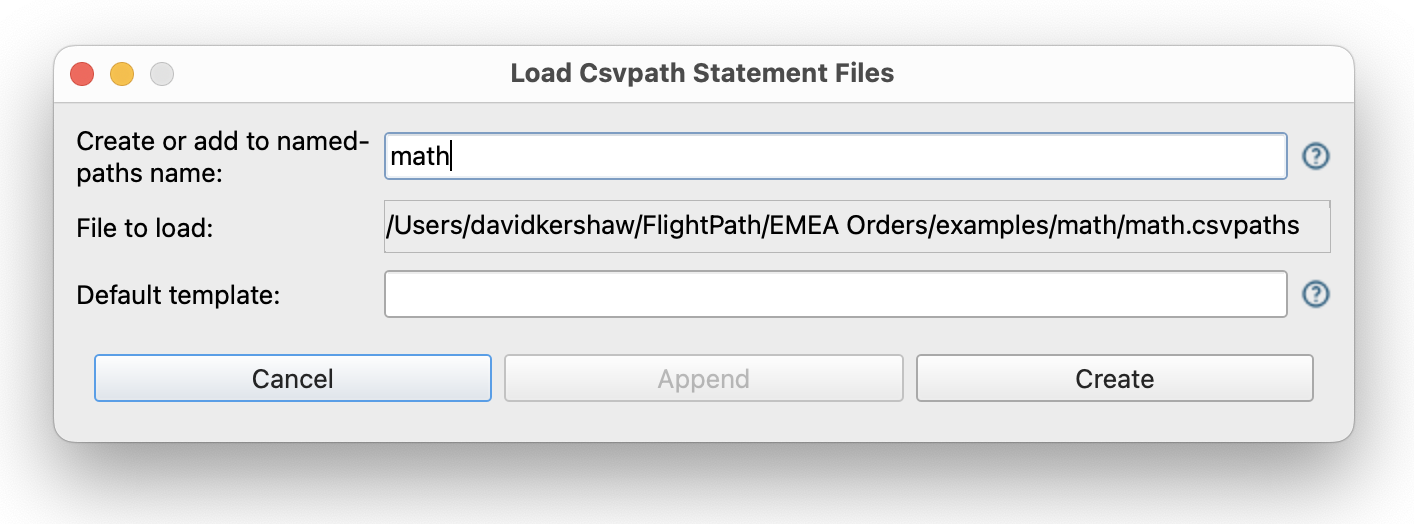

• The Load Dialog opens. Give the new group you are creating the name math.

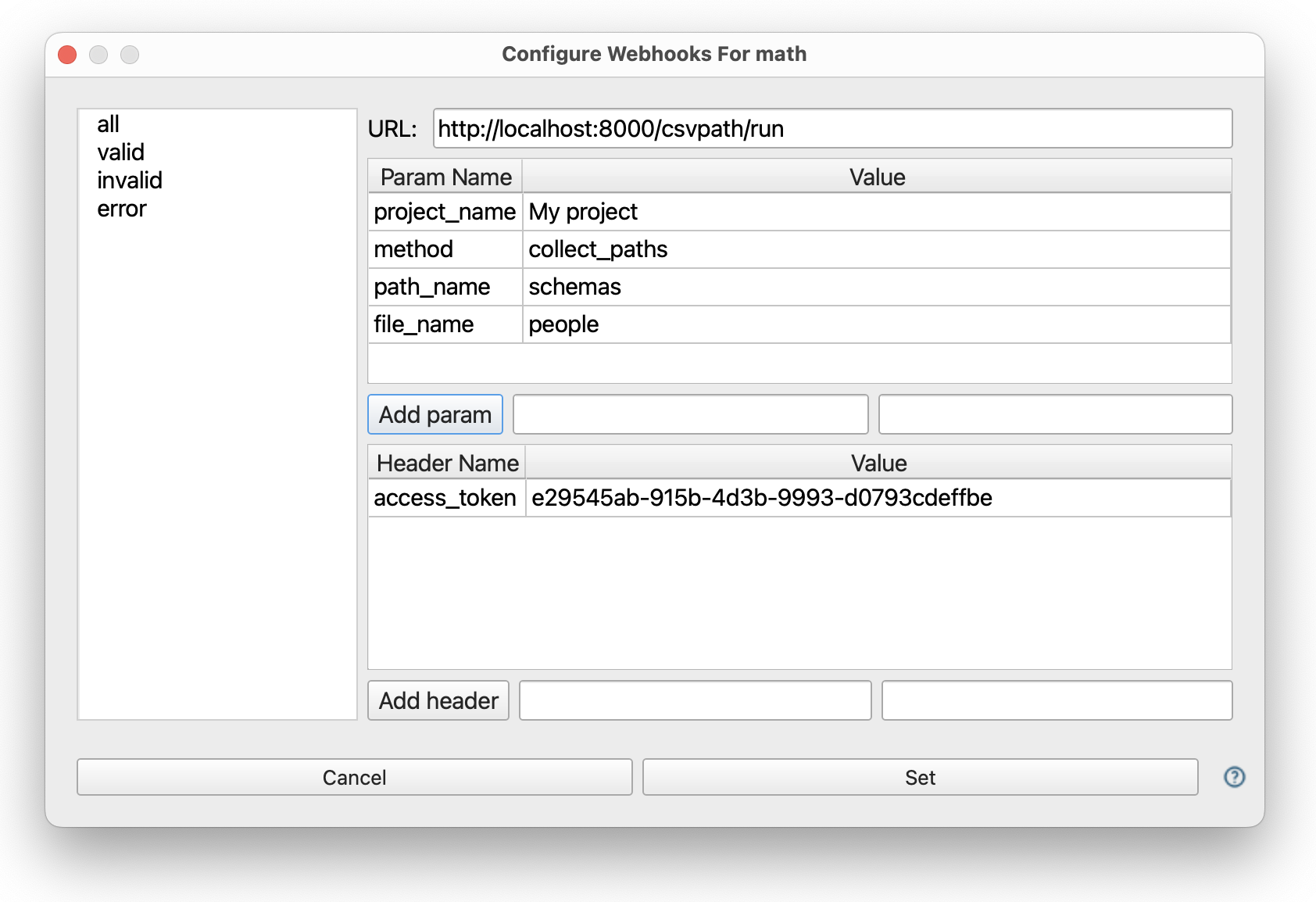

• In the named-paths groups helper window on the middle right, right-click on the new group and select Set webhooks.
• Fill in the all webhook with the required fields for the /csvpath/run endpoint: project_name, file_name, path_name, and method.
• Below the parameters, add your access_token header with the project’s API key

• In the left-hand project files tree, right-click on the Automobiles_Annual_Imports_and_Exports_Port_Authority_of_NY.csvfile and select Stage data. In the Stage Dialog name your file autos and save it. This is the file you are going to run against the math group.
• Do the same for the schemas.csvpaths and people.csv files from the examples/schemas directory. Name them schemas and people respectively, so that the names match the values you entered in the Webhooks Dialog. When our math / autos run ends the schema / people pair will run.

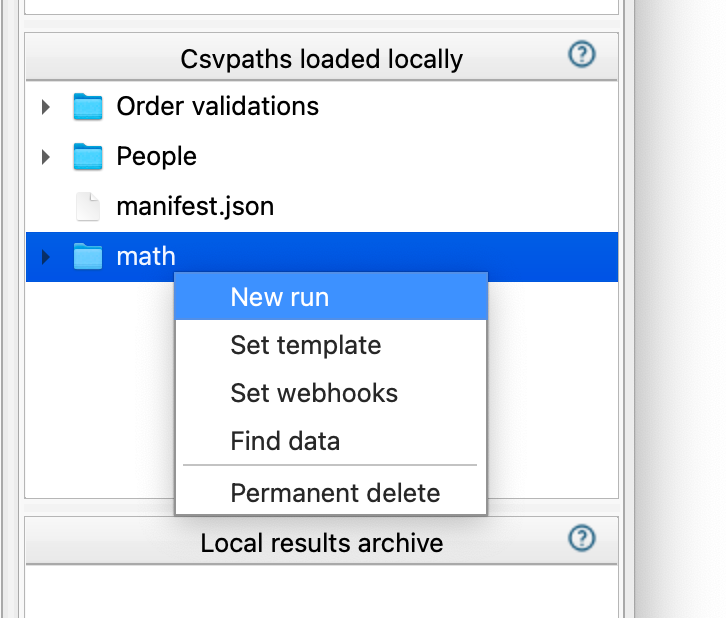

• Now simply create a run using your named-file autos and your csvpath group math. To do that, right-click on either the math group or the autos file in the right-hand helper windows where you loaded them. Select the New run item in the context menu and make sure the Run Dialog has the correct file and csvpaths group before hitting the submit button.

When your autos / math run completes you will see it in the Archive window at the lower left. Shortly after that you should see your people / schemas run in Archive as well, it having been kicked off by the webhook call to FlightPath Server.
